Features:
▪ Output 12VDC,0~75W. (24VDC version is available)
▪Single channel constant voltage output,6.2A Max.
▪Support 3-in-1 dimming mode( 1-10V active signal, adjustable resistance and PWM signal).
▪High input voltage of 220VAC ~ 240VAC.

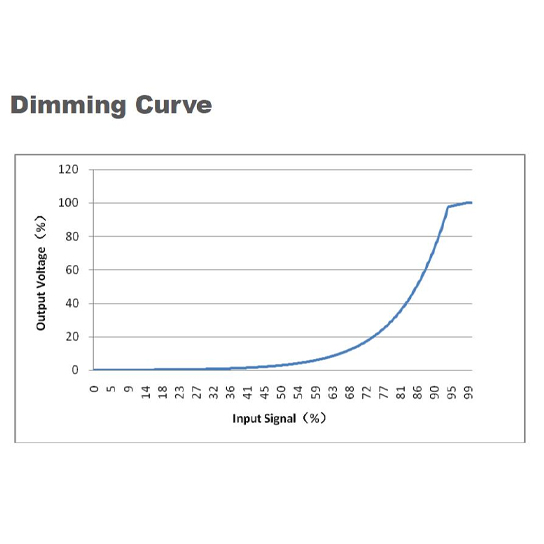

▪Dimming range of 1-100%, and dimming effect smooth,no flicker.
▪100% output when no dimming signal input, can be used as normal power supply.
▪ Over load protection; over voltage protection; short circuit
▪ protection；Over temperature protection.
▪ IP65 waterproof, suitable for outdoor LED lighting application. Notes:
1. Advised to use for LED strip lighting.
2. The total power of the LED lighting is advised less 25% than the max output power of the dimming driver.
